3D Printing Revolutionizes Refractory Alloys for Hypersonic Applications

Published on September 9, 2024 by Mélanie W.
Niobium C103

In high-stakes industries like aerospace and defense, the demand for advanced materials that can endure extreme environments is relentless. Refractory alloys, known for their exceptional resistance to heat and wear, are becoming indispensable in these fields. Among them, Niobium C103 stands out due to its unique properties and transformative potential when processed through additive manufacturing (AM).

Niobium C103 is primarily composed of niobium (Nb), with additions of hafnium (Hf) and titanium (Ti) to enhance its high-temperature strength and oxidation resistance. This alloy is highly corrosion-resistant and stable in extreme heat, making it ideal for rocket engines and advanced weaponry. Traditionally, C103 is classified as a low-strength refractory alloy in its wrought form, which has restricted its use. Relying on round bar stock, conventional methods yield simple shapes, often wasting 95% of the material, leading to a 20:1 buy-to-fly ratio—an inefficient, costly, and inflexible process.

Addressing these challenges, Castheon, a division of ADDMAN Group, led by Dr. Youping Gao, has revolutionized the use of Nb C103 through metal AM. Dr. Gao, with over 20 years of experience at Aerojet Rocketdyne as a Tech Fellow and Discipline Chief in Manufacturing Engineering, played a pivotal role in advancing critical rocket engine manufacturing processes, including AM, which earned NASA production certification for mission-critical human spaceflight components.

At Castheon, Dr. Gao’s extensive knowledge of traditional Nb C103 manufacturing has been pivotal in addressing the material’s fabrication challenges. His expertise facilitated the independent development of proprietary 3D printing techniques that allow precise control over microstructure and deposition rates, essential for integrating Oxide Dispersion Strengthened (ODS) and Carbide Dispersion Strengthened (CDS) structures into the alloy. These advancements significantly enhance the material’s performance. The process achieved a three-order-of-magnitude (1,000 times) improvement in creep resistance over traditional forging, advancing the material to a medium-strength category.

To further advance the capabilities of Nb C103, Castheon undertook a meticulous refinement of both the printing parameters and the raw Nb C103 powder. This effort culminated in the development and patenting of Super C103™, a significant breakthrough in refractory alloys. Central to this innovation is the precise integration of high-grain carbon particles into the Nb C103 powder during the LPBF process. By embedding these particles strategically, the Super C103 alloy achieves a remarkable improvement in both structural integrity and high-temperature performance.

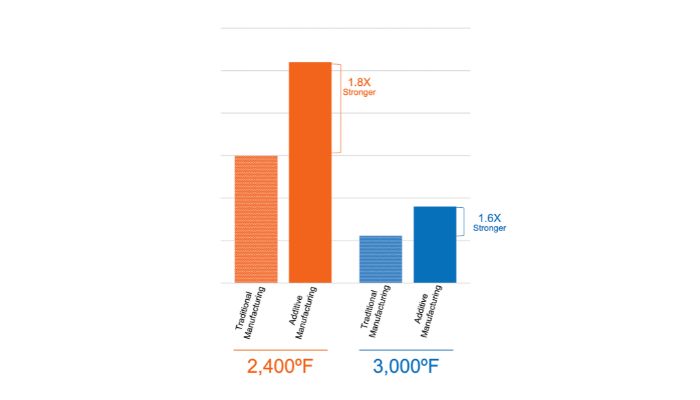

Strength benefits of C103 AM compound and multiply at hypersonic temperatures. Optimization of C103 AM into Super C103 AM will deliver even higher performance.

This enhancement is particularly critical in applications requiring materials that can withstand extreme conditions while maintaining strength and stability. The optimized microstructure provided by the high-grain carbon particles not only reinforces the alloy but also enables it to perform at levels far beyond what was previously possible with conventional Nb C103. As a result, Niobium Super C103 has been elevated to a high-strength category, making it an ideal solution for cutting-edge aerospace and defense applications where material performance is paramount.

“There are three strength categories for Nb-based refractory alloys: low, medium, and high. With our patented process, we’ve elevated Niobium C103 to the high-strength category, now known as Super C103™. We believe this breakthrough will play a crucial role in the future of hypersonic missiles and defense systems, delivering significant advantages in cost and performance.” – Dr. Youping Gao

This advancement in Nb C103 represents a significant leap forward for the aerospace and defense industries. By overcoming the limitations of traditional processing methods and elevating the material to new strength categories, Castheon is setting a new standard for the use of refractory alloys in high-stress environments. As the demand for materials that can withstand extreme conditions continues to grow, the innovations in Super C103 position it as a key component in the next generation of hypersonic and defense technologies. The future of these industries relies on materials that not only perform under pressure but also drive cost-efficiency and technological advancement—exactly what Castheon’s breakthrough in Niobium Super C103 offers. You can find out more HERE.

What do you think of the material Niobium C103? Do you use refractory alloys in 3D printing? Let us know in a comment below or on our LinkedInFacebook, and Twitter pages! Don’t forget to sign up for our free weekly newsletter here for the latest 3D printing news straight to your inbox! You can also find all our videos on our YouTube channel.
